TRAILER OPTIONS

CUSTOM COLORS

Standard coating is powder coat black, custom powder coat colors are available to match your company colors. You may custom color the frame, or the fender tops and systems box - or – both.

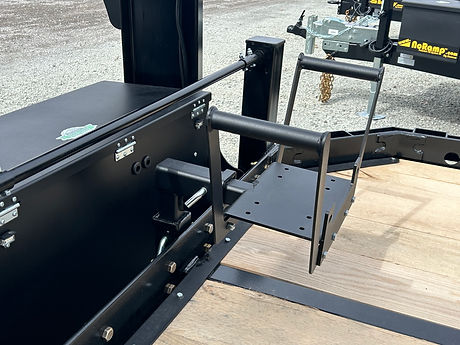

SPARE TIRE RACK

Spare tire rack mounts in any one of the many

stake bed pockets located around the trailer.

16" ALUMINUM WHEELS

Stylish 16” Aluminum Wheel upgrade available.

17.5" STEEL WHEELS

Available 16 ply 17.5” Wheels/Tires upgrade.

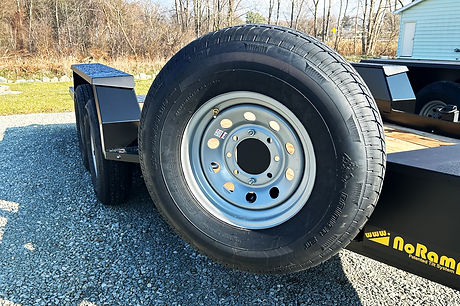

SPARE WHEEL / TIRE

Standard 16” Steel, 16” Aluminum, and 17.5” Steel Wheels/Tires available

WINCH MOUNTING PLATE

All trailers are built with winch receivers, winch plate with 90-degree elbow available at point of purchase, or at later date.

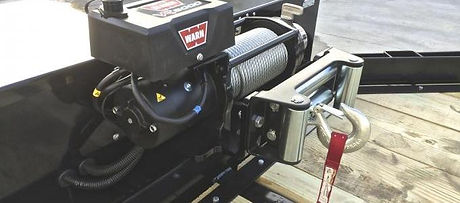

WINCHES

Select from a wide variety of Warn Winches including 2000 lbs., 4000 lbs., 8000 lbs., and 10,000 lbs.

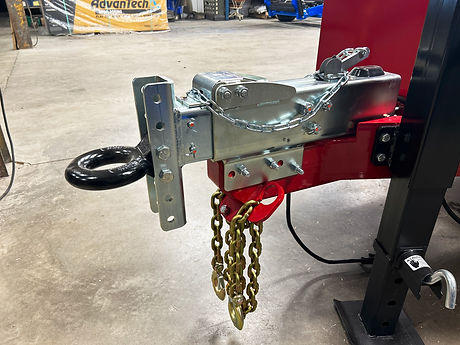

PINTLE COUPLER

Available Pintle Coupler for fleet needs

SOLAR TRICKLE CHARGER

An available 5-watt solar charger helps maintain on board battery while being stored.

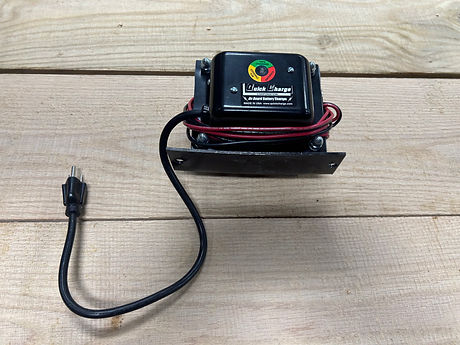

10 AMP ON BOARD BATTERY CHARGER

Optional 10 amp On Board Battery Charger, mounted within the systems box, allows for quick plug in of extension cord to guarantee 100% full charge of battery for next day’s use.

MOBILE D-RINGS

Fitting into any of the standard stake bed pockets providing versatility for tie down locations. Available on all models.

HARDWOOD DECKING

Hardwood decking available as a nominal upgrade from the standard treated pine deck.

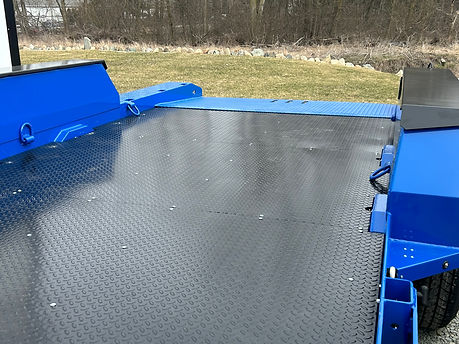

STEEL DIAMOND PLATE DECKING

14 gage steel sheets bolted over existing wood decking.

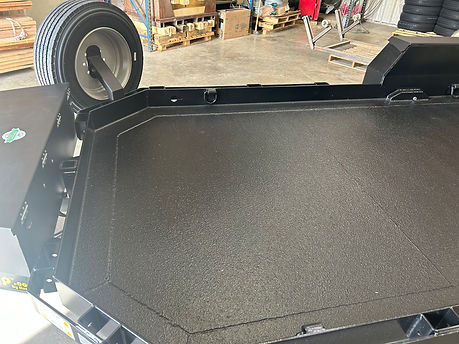

SOLID STEEL DECKING

Solid 3/16” steel deck design, eliminating wood under decking.

12K HD JACK STAND

This option replaces the standard 7k Jack Stand with a 12k unit.

ELECTRIC / HYDRAULIC
JACK STAND

Appreciate the convenience of push button lowering and raising trailer off of tow vehicle with the Electric/Hydraulic Jack Stand, available for all bumper pull and gooseneck trailers.

*Can be added / retro-fit to current trailer

HYDRAULIC SURGE BRAKES

Replace standard equipped electric drum brakes with optional hydraulic drum surge brakes for use with tow vehicles not equipped with electric brake controller.

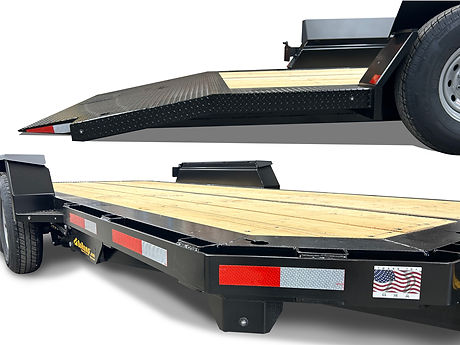

HIGH PLATFORM BUILD

This build inverts the main frame rails so the deck sits flush with main frame top, instead of sitting down in the main frame. This build does increase the approach angle of the beaver tail and limits loading low ground clearance machinery such as scissor lifts, forklifts, pallet jacks, and the likes.

STACKER KIT

For freight savings shipping, stacker kits provides ability to stack one trailer atop the other for transporting multiple trailers.
