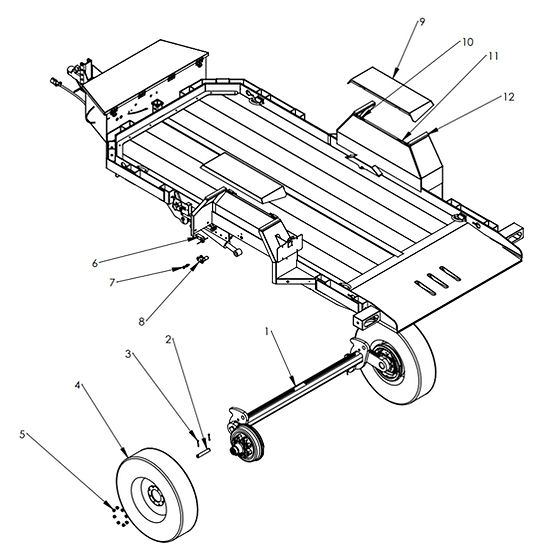

Axles Single

1

KDT6A

AXLE ASSEMBLY

2

2

KDT20303

AXLE PIN, 1”x 8”

2

3

CP-188x2000

3/16” x 2” COTTER PIN

4

4

20760

16 x 600 WHEEL, STEEL, 8 BOLT

2

5

006-080-00

LUG NUT, ½-20 UNF

16

6

RMC-402

MINI LIMIT SWITCH-AXLE LATCH

1

7

3/8-16 x 3/4 UNC

HEX BOLT, GRADE 5

4

8

KDT20001-A

WELDED AXLE PIVOT PIN ASSEMBLY

2

9

KDT1200AS2

WHEEL WELL LID, U-12

2

10

KDT20096LH

LH WHEEL WELL HINGE/PIN ASSEMBLY

2

11

KDT20096RH

RH WHEEL WELL HINGE/PIN ASSEMBLY

2

12

4712

1”x 8” FOAM SEAL

4
