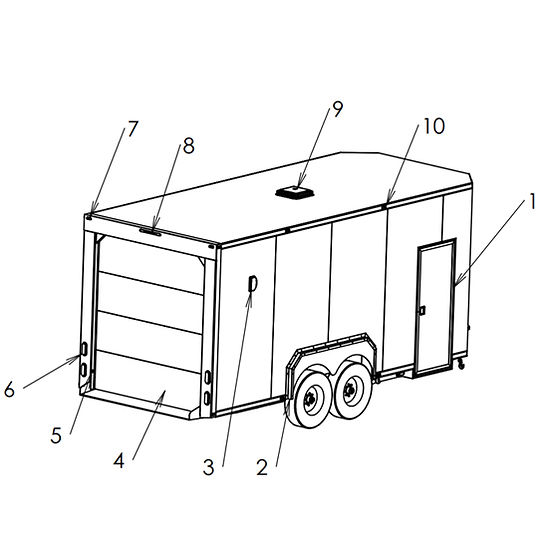

Enclosed Options Exterior View

1

SQRH30X72

ENTRY DOOR, 30”

1

1-1

SQRH32X72D

ENTRY DOOR, DELUXE, 32” W/ KEYPAD ENTRY (option)

1

1-2

DH-HC-ID-HB-4-AL

HOOK & EYE DOOR HOLDBACK (not shown)

1

2

KDT8034

FENDER SKIRT ASSEMBLY, E14, E19, E23

2

(includes spray guard and spray guard hardware)

2-1

1/4-14 x 1 CHST

PHILLIPS SCREW, SELF-TAPPING, W/ SEALING WASHER

14

2-2

KDT80117

SPRAY GUARD, RUBBER, E14, E19, E23

1

2-3

KDT80118

BACKER STRIP, TOP

1

2-4

KDT80119

BACKER STRIP, ANGLE (all E-models)

2

2-5

KDT80120

BACKER STRIP, SIDE (all E-models)

2

2-6

1/4-20 X3/4 UNC

HEX BOLT, GRADE 5 (all E-models)

14

(11 required for E12, 19 required for E24)
